Measurement 5Reflective 2D Laser Displacement Sensor

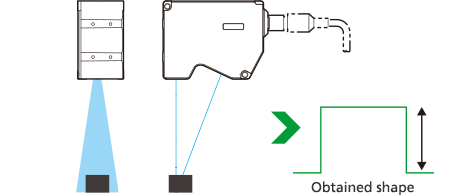

Thickness is found by simultaneously measuring the base surface and target using a 2D laser displacement sensor and measuring step from the obtained profile.

KEY POINTS

Errors occur when there is a gap between the target and the reference surface.

1. Use a base surface with high precision, such as a surface plate.
2. Use vacuum contact or magnetic contact.

Improving mounting using the above steps will significantly improve measurement accuracy.

LJ-V Series

2D Triangulation Method.
In-line Multi-point measurement.
World's Fastest sampling rate at 64,000 images/sec.

Click here for more information.
