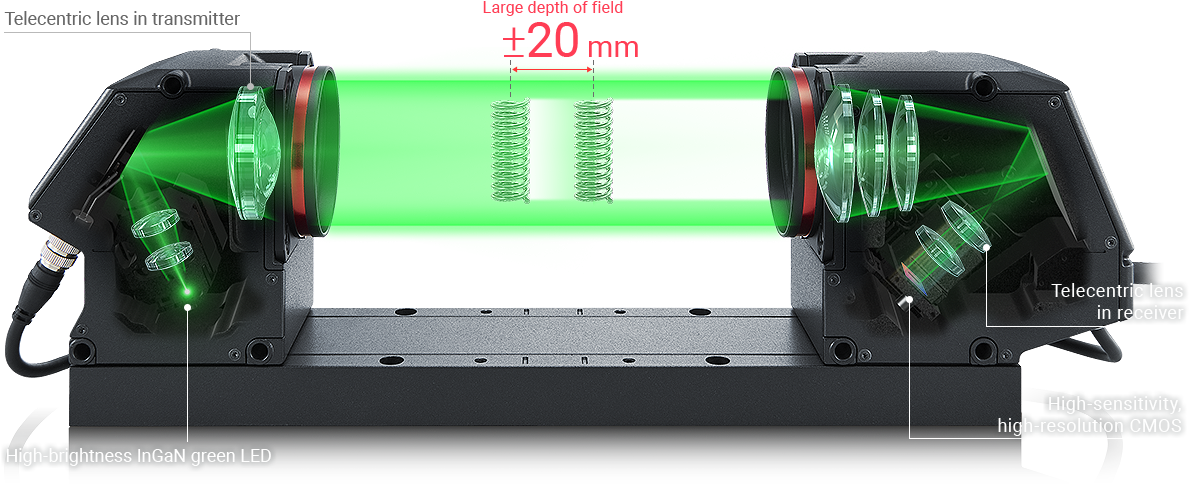

The dual telecentric optical system—with telecentric lenses in the transmitter and receiver—ensures sharp edges without sacrificing accuracy even for misaligned targets.
This technology enables stable measurement in a large depth of field (+/- 20 mm), providing a robust solution for inline measurement.
Target position changes cause image blurring.
Edges are sharp even if the target is shifted.
Low-distortion lenses help minimize distortion of the captured image even near the edges.
KEYENCE also uses a proprietary algorithm that can perform measurement with no need to worry about the position of targets.
This eliminates the need for conventional lighting, fixed target positioning, and calibration.
Take advantage of more than 100 measurement tools that can be mixed and matched. Utilize a wide range of inline inspections beyond simple dimensional measurements, including GD&T, master comparisons for identifying products, and defect distance measurements for visual inspections.
Basic Tools

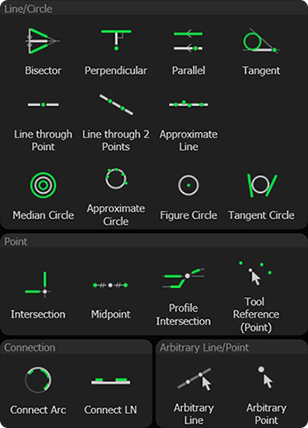

Element Tools
Auxiliary Tools
Application Tools
GD&T Tools
