PLC(Building-block/ Modular/ High Speed type)

A building-block PLC with high-speed processing and large capacity. With excellent program execution speed, motion control period, and system responsivity, this PLC achieves higher device control speed. Also, the compliance with IEC 61131-3, an international standard for PLC programs, makes it possible to standardise programs. Furthermore, the built-in operation recorder function keeps track of the status before and after a problem occurs, allowing for easy on-site cause analysis.

Download Catalogues

Include Discontinued Series

Products Lineup

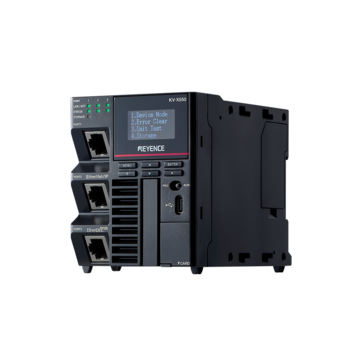

KV-X series - Programmable Logic Controller

Programmable Logic Controller KV-X series

Equipped with Universal Library to challenge the status quo of motor control, this new-generation PLC is compliant with IEC 61131-3, an international standard for PLC programs. The Machine Operation Recorder function records all variables, devices, cameras, and events when a problem occurs. This PLC accelerates every process from design to startup. Furthermore, the novel PLC platform adopts a Quad Core CPU and large-capacity memory, and the CPU unit works with the EtherCAT®, EtherNet/IP™, and OPC UA communication protocols. Motion control period, program execution speed, and system responsivity. This PLC achieves higher speed for various types of device control.

Catalogues Price

Features

Outstanding Speed of Setup, Transfer and Programming

Compliant with IEC 61131-3, an international standard, and equipped with Universal Library and PLCopen Motion Control FB.

Supports 14 brands and 36 series. Startup process can be completed in just 5 minutes across all brands

Universal Library makes it possible to select the optimal motor brand according to your purpose.

Integrating configuration software for all brands into KV STUDIO

Offering common settings and programs for different brands, KV STUDIO can handle the entire process from design to startup.

Novel PLC Platform

Adoption of Quad Core CPU and large-capacity memory.
Motion control period, program execution speed and system responsivity.
Achieving higher speed for any device control.

[Ultra high-speed motion performance] Ultra-high-speed: 12 axes at 125 µs, Multi-axis: 128 axes at 1 ms or less
[Program execution speed] About 27 times faster than conventional products
[System responsivity] Unit interrupt: 5 µs, 40 µs inter-unit synchronisation
[High-speed machine operation recorder function] Machine operation recorder processing speed is reduced to 1/10

KV-8000 series - Programmable Logic Controller

Programmable Logic Controller KV-8000 series

PLC with built-in operation recorder function.

Catalogues Price

Features

Resolve Problems Quickly with the Machine Operation Recorder Function

The Machine Operation Recorder function records all equipment information before and after a shutdown.
This enables immediate identification of the cause of the problem, allowing for shortened recovery time and improved operational availability through fundamental countermeasures.

Recording : All equipment data from devices, cameras, and events are automatically recorded.
Playback : View linked playback of various data sources recorded from the moments before the problem occurred.
Analysis : Automatically analyse ladder programs and view tree diagrams of related devices.

Recording

Prevent Problems with Symptom Monitoring

Constantly monitor the cycle time, device operating times, and waveform data (temperature, pressure, torque, etc.) for each scan cycle. Alerts for equipment behaviour changes help prevent problems before they start.

Program-less Communication Options with KV-X COM

Connect seamlessly to factory automation devices and PLCs
Program-less PLC networking capability that supports 4 major industrial networks

Use KV-X MOTION for Positioning/Motion Control

Program with drag/drop code or function blocks
Synchronise motion across multiple axes
Motion programs do not affect PLC scan time

KV-8000 with Built-In OPC UA Server Function

Connectable to various devices and upper level systems via an international standard
Advanced security ensures safe data communication
Easily configurable with no intermediate PC required

KV-7000 series - Programmable Controller

Programmable Controller KV-7000 series

Exceptional speed and storage that exceed expectations for PLCs

Catalogues Price

KV-5000/3000 series - Programmable Controller

Programmable Controller KV-5000/3000 series

The Ultra High-speed PLC Delivers Real-time Control

Catalogues Price
